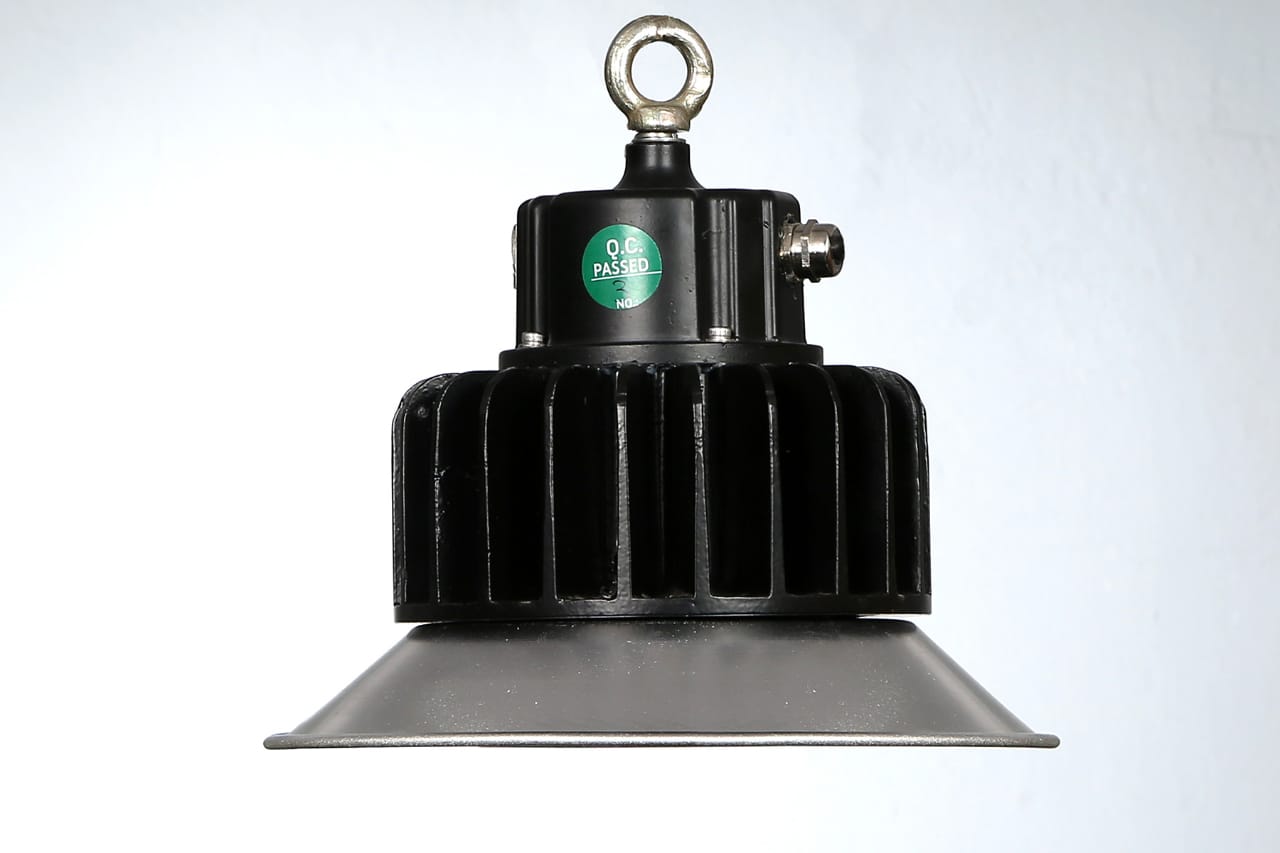

COB HIGHBAY LIGHT PREMIUM (GEHBCOB-45P)

COB HIGHBAY LIGHT PREMIUM (GEHBCOB-45P)

Features:-

Soft and comfortable light to relieve the fatigue of eyes.
Excellent CRI for actual colour reproduction.
Energy saving efficiency and low heat produce.
Aluminum die-cast housing for excellent heat management.
440V Protection for 2 Hrs with thermal fold back
Quick installation, Special design, Highly reliable professional design

Applications :-

• Industry • Ware-house • Airport • Shopping Mall • Parking Lot • Sports Hall

View TDS

Read detailed information

Standards Compliance:-

• IS 10322

• EN 61000-3-3, Voltage Fluctuations, Flicker

• IS 15885 (Part 2/Sec 13)

• EN 61000-4-5, Surge Immunity

• EN 61000-3-2, Harmonics Current

• EN 61547, EMC

Specification:-

• COB-LED Lamp from Citizen-Japan & Bridgelux USA having unbelievable lumen efficacy & Long Life.

• Integrated CC mode LED Driver

• Diffused glare free, Antiglare & Transparent based primary optics with desire light spreading angle options.

• Lowest temperature class T6/T case – <60 Degree C.

• Universal Input voltage range 90-295 VAC.

• Super Durable Powder Coating.

• Aluminum dome with desire light spreading angle options.

• PF 0.90, THD <10%, SPD-DM 4Kv CM-6Kv

Product Code	System Wattage	LED Lumen Efficacy	Color (CCT)	CRI	Primary Optics	Warranty	View TDS
GEHBCOB-45P	45	170Lu/Watt	3000K-6500K	80 Min	60°/90°/120°/ Diffuser	05 Years	View TDS
GEHBCOB -60P	60	170Lu/Watt	3000K-6500K	80 Min	60°/90°/120°/ Diffuser	05 Years	View TDS
GEHBCOB -80P	80	170Lu/Watt	3000K-6500K	80 Min	60°/90°/120°/ Diffuser	05 Years	View TDS
GEHBCOB -100P	100	170Lu/Watt	3000K-6500K	80 Min	60°/90°/120°/ Diffuser	05 Years	View TDS
GEHBCOB -120P	120	170Lu/Watt	3000K-6500K	80 Min	60°/90°/120°/ Diffuser	05 Years	View TDS
GEHBCOB -150P	150	170Lu/Watt	3000K-6500K	80 Min	60°/90°/120°/ Diffuser	05 Years	View TDS
GEHBCOB -180P	180	170Lu/Watt	3000K-6500K	80 Min	60°/90°/120°/ Diffuser	05 Years	View TDS
GEHBCOB -200P	200	170Lu/Watt	3000K-6500K	80 Min	60°/90°/120°/ Diffuser	05 Years	View TDS
GEHBCOB -240P	240	170Lu/Watt	3000K-6500K	80 Min	60°/90°/120°/ Diffuser	05 Years	View TDS
